IDE Interface Overview

Explore Lenify's professional IDE built on Monaco Editor (VS Code engine) with comprehensive development tools and blueprint-driven features.

IDE Layout Overview​

Lenify's IDE follows VS Code's familiar layout with a modern twist, providing a complete development environment organized into distinct areas:

  • Activity Bar (Left): 6 main development panels for navigation and tools
  • Sidebar (Left-Center): Dynamic content area that changes based on selected activity bar panel
  • Main Editor Area (Center): Monaco Editor with VS Code engine for code editing
  • Terminal (Bottom): Integrated XTerm terminal with VS Code theming
  • Chat Interface (Right): Optional AI assistant panel for development help
  • Status Bar (Bottom): Git information, problems, file details, and GitLens controls

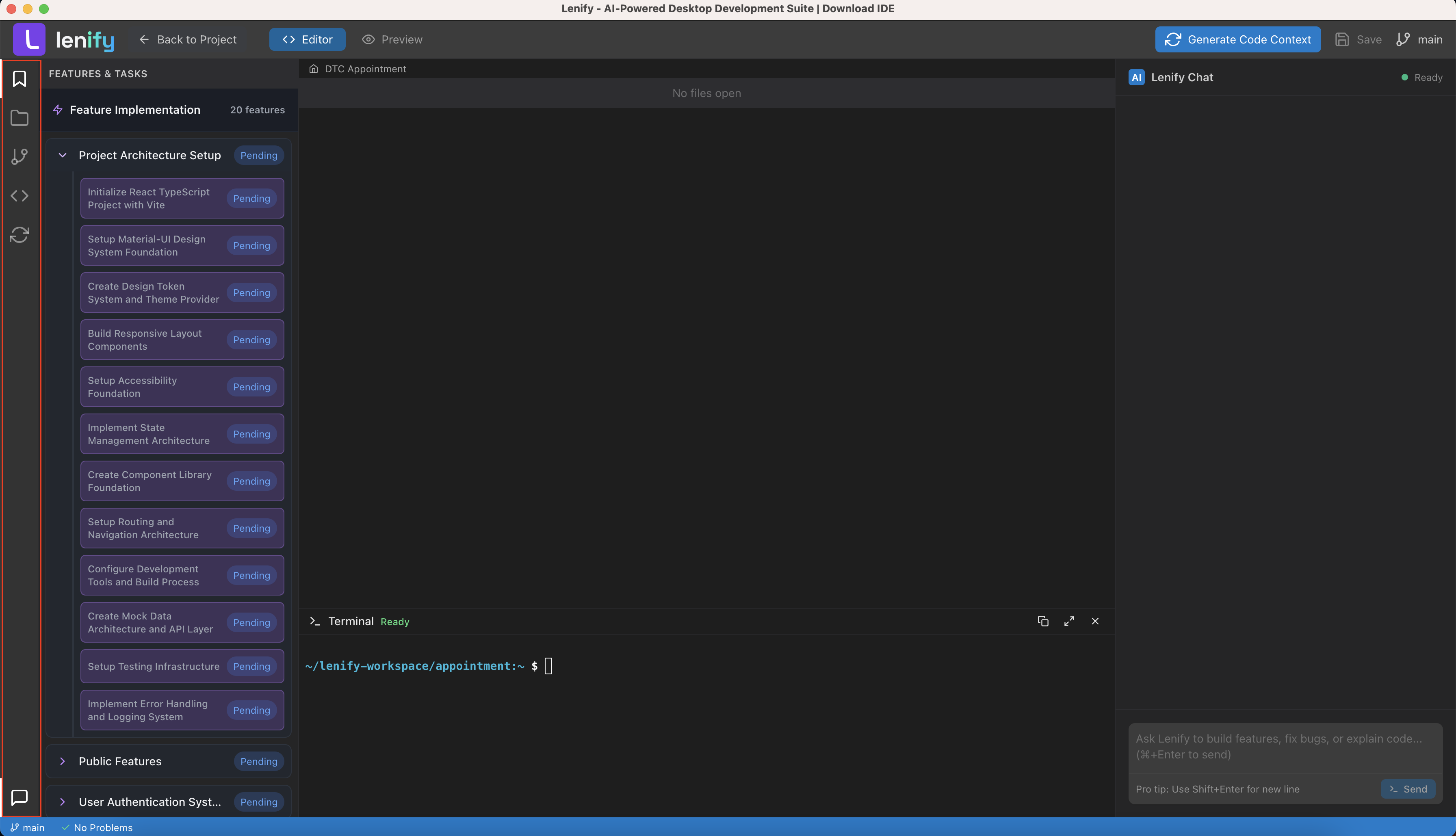

Lenify IDE Activity Bar Complete IDE layout with activity bar, sidebar, Monaco Editor, terminal, and AI chat interface

Activity Bar & Sidebar Panels​

The activity bar provides quick access to 6 essential development panels. Click any panel to view its content in the adjacent sidebar:

1. Features & Tasks Panel (FiBookmark)​

Blueprint Integration:

  • Expandable Feature List: Features directly from your project blueprint with collapsible sections
  • Task Status Tracking: Visual badges for accepted (green), rejected (red), pending (yellow), and default (blue) states
  • Task Management: Click tasks to navigate and interact with project features
  • Real-Time Updates: Automatic synchronization with blueprint changes and loading states
  • Animated Interactions: Smooth expand/collapse animations using Framer Motion

2. File Explorer Panel (FiFolder)​

Project Navigation:

  • Hierarchical File Tree: Complete project structure with expandable folders
  • File Selection: Click to select and open files in the Monaco Editor
  • Context Menu Support: Right-click functionality for file operations
  • Folder Management: Toggle folder expansion/collapse for better navigation
  • VS Code Styling: Consistent styling with VS Code sidebar theme variables

3. Source Control Panel (FiGitBranch)​

Git Integration:

  • Change Tracking: Integration with git changes count through badge indicators
  • File Selection: Click git files to open them in the editor
  • Activity Bar Badge: Shows git changes count as a badge on the activity bar item
  • Workspace Integration: Connected to workspaceRoot for proper git repository context
  • Repository Context: Operates within the current workspace's git repository structure

4. Code Context Panel (FiCode)​

Context Analysis:

  • Code Context Display: View generated code context information through CodeContextViewer component
  • File Tree Integration: Uses FileTree component for structured context navigation
  • Context Selection: Select specific context files for detailed analysis
  • Structured Display: Organized presentation of code context and dependencies

5. Generate Code Context Panel (FiRefreshCw)​

AI-Powered Analysis:

  • Context Generation Trigger: On-demand button to initiate code context generation
  • Processing States: Loading indicators and disabled states during context generation
  • Progress Feedback: Visual feedback through loading states and context generation status
  • State Management: Proper handling of context generation loading states and completion

6. AI Assistant Panel (FiMessageSquare)​

Chat Interface Integration:

  • Panel Toggle: Click to show/hide the AI chat interface on the right side
  • Conversational AI: Natural language interface for development assistance
  • Real-Time Streaming: Live streaming responses with stream cancellation support
  • Context Integration: AI understands your complete project structure for relevant suggestions

Monaco Code Editor (Center Area)​

Professional Code Editing​

The Monaco Editor provides industry-standard code editing capabilities in the main center area:

Core Features:

  • VS Code Engine: Powered by the same Monaco Editor used in Visual Studio Code
  • Syntax Highlighting: Monaco Editor's built-in syntax highlighting for multiple programming languages
  • Multi-Cursor Support: Edit multiple locations simultaneously
  • Code Folding: Collapse and expand code blocks for better navigation
  • Search and Replace: Built-in find/replace functionality
  • Diff Viewer: Side-by-side diff comparison for file changes with read-only mode

Layout Integration:

  • Vertical Split: Uses React Split with vertical orientation dividing editor and terminal
  • Resizable Panels: Drag split pane dividers to resize editor and terminal areas
  • Automatic Layout: Responsive editor that adapts to panel resizing
  • Theme Integration: Uses VS Code dark theme variables for consistent styling
  • View Switching: Toggle between code editor and browser preview modes

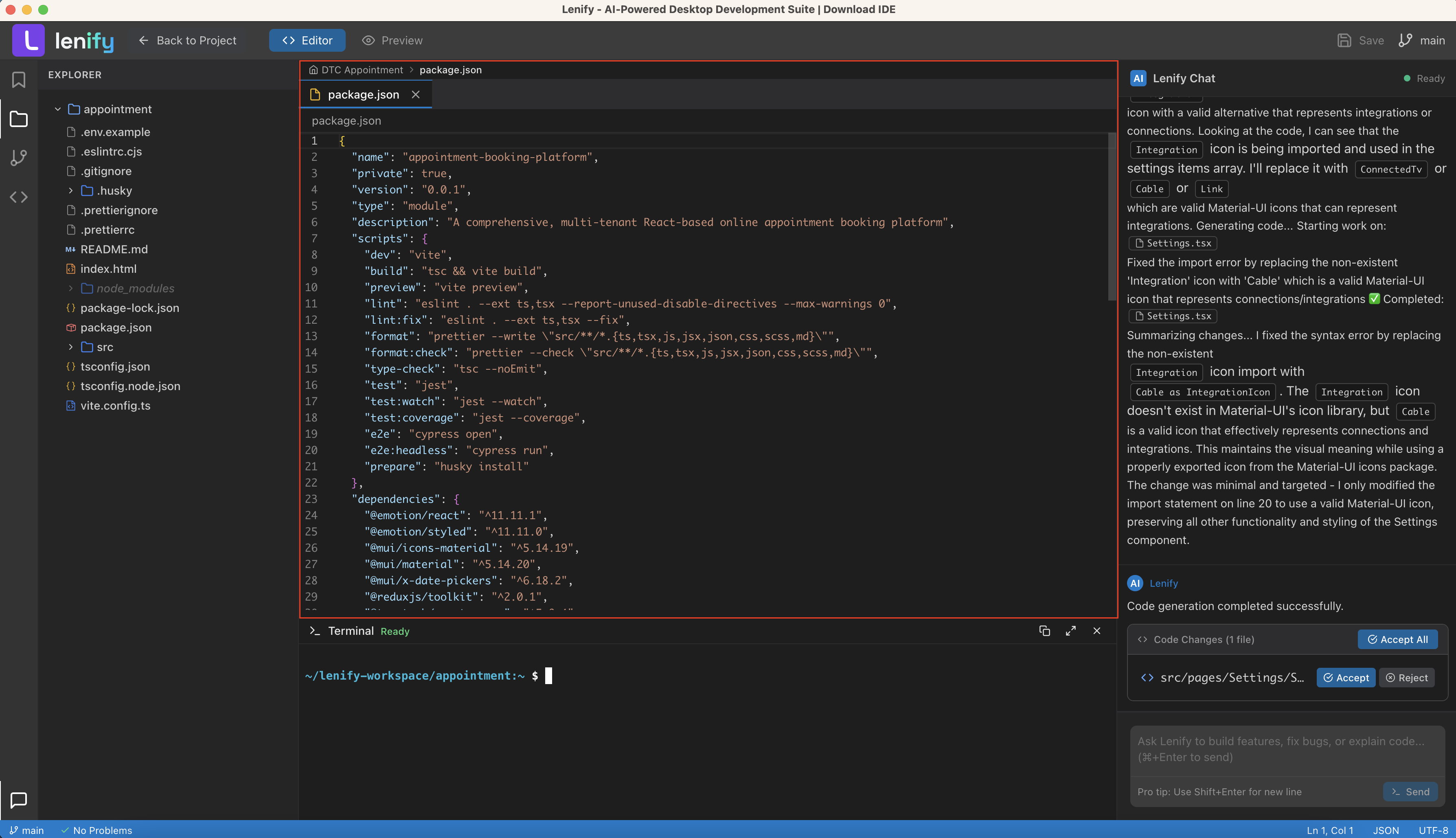

Lenify Monaco Code Editor Professional code editor with VS Code engine, syntax highlighting, and advanced editing features

AI Chat Interface (Right Panel)​

Conversational Development Partner​

Chat Interface Features:

  • Toggle Visibility: Click the AI Assistant activity bar button to show/hide the chat panel
  • Real-Time Streaming: Live streaming AI responses with stream cancellation support
  • Message History: Persistent conversation with complete development context
  • Code Generation: Generate components, functions, and features from natural language
  • Proposed Changes: Accept or reject AI-suggested code modifications
  • Error Handling: Built-in error confirmation and cancellation dialogs

Advanced AI Capabilities:

  • Context-Aware Help: AI understands your complete project structure and blueprint
  • File Operations: Open files for code generation with direct editor integration
  • Stream Control: Ability to cancel long-running AI operations mid-stream
  • Loading States: Visual feedback during code generation and AI processing
  • Copy & Insert: One-click code copying and direct insertion into active files

Lenify AI Assistant Chat Interface Powerful chat interface with real-time code generation, syntax highlighting, and context-aware assistance

Integrated Terminal (Bottom Panel)​

Professional Terminal Integration​

XTerm Terminal:

  • Full Terminal Functionality: Complete terminal using XTerm.js library
  • VS Code Theming: Consistent styling with VS Code terminal theme variables
  • Project Integration: Terminal tied to specific projectId with workspace root context
  • Initialization Status: Visual feedback during terminal setup and initialization
  • Header Display: VS Code-style terminal header with title and status information

Terminal Features:

  • Workspace Context: Automatically operates within the current project's workspace root
  • Error Management: Built-in error handling with proper user feedback
  • Status Tracking: Shows initialization progress and readiness states
  • Lazy Loading: Terminal loads on demand with fallback component during loading
  • Minimum Height: Maintains 100px minimum height for usability in split layout

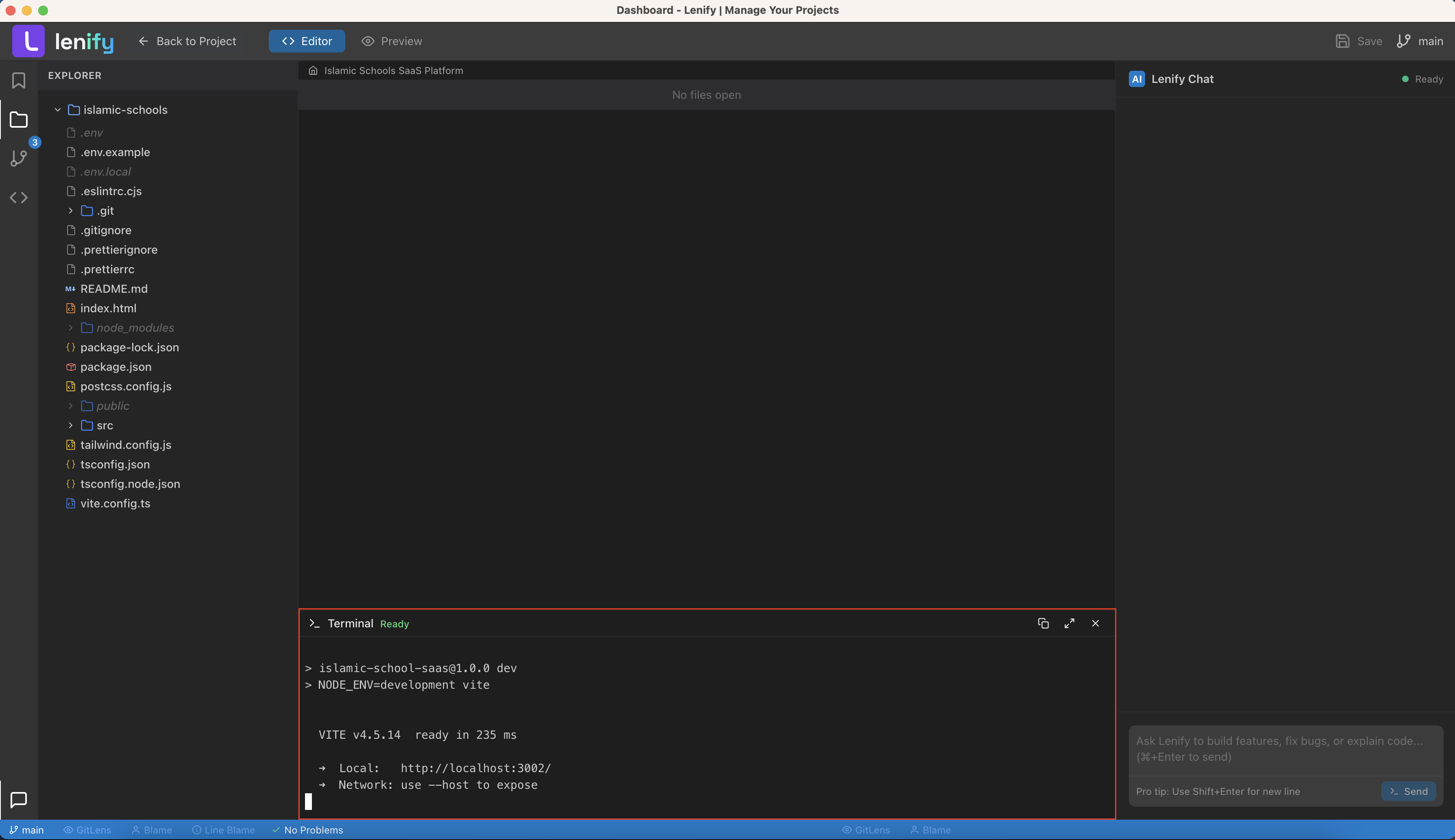

Lenify Integrated Terminal Professional terminal component with XTerm integration and VS Code theming

Browser Preview (Alternative View)​

Live Application Preview​

Modern Browser Preview:

  • Full Screen Mode: Takes over the main content area when browser preview is active
  • View Switching: Toggle between code editor and browser preview modes
  • Component Loading: Async loading with proper fallback handling during initialization
  • Lazy Loading: Browser preview loads on demand with LazyLoadingFallback component

Preview Integration:

  • Alternative Layout: Replaces the Monaco Editor when preview mode is active
  • Seamless Switching: Quick toggle between development and preview modes
  • Modern Component: Dedicated ModernBrowserPreview component for application testing

Lenify Browser Preview Modern browser preview with seamless switching from code editor

Status Bar & GitLens (Bottom)​

Professional Status Information​

Status Display:

  • Git Branch: Current git branch with FiGitBranch icon
  • Problem Indicators: Error and warning counts with FiAlertCircle and FiInfo icons
  • Success Indicator: "No Problems" status with FiCheck icon when no issues exist
  • File Information: Current file line/column position, language, and encoding
  • GitLens Integration: Toggle GitLens features directly from status bar

GitLens Controls:

  • GitLens Toggle: Enable/disable GitLens with visual status indicator (Ctrl+Shift+L)
  • Blame Annotations: Toggle blame annotations for all lines (Ctrl+Shift+B)
  • Line Blame: Toggle current line blame information display
  • Repository Detection: GitLens controls only appear when working in a git repository
  • Status Indicators: Color-coded controls (blue when active, gray when inactive)

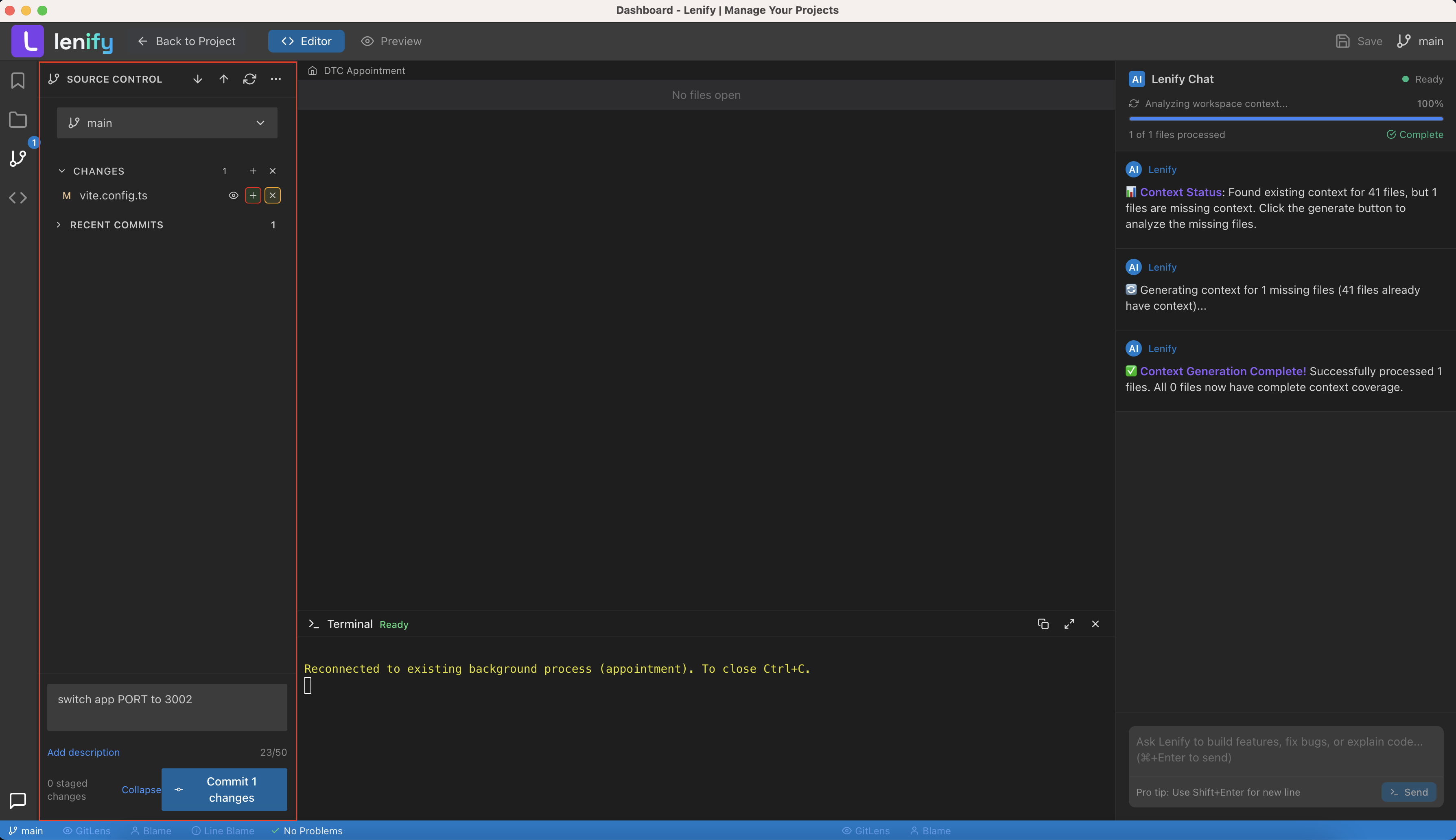

Lenify VS Code Status Bar Professional status bar with git information, problem indicators, file details, and GitLens controls

GitLens Integration Features​

Advanced Git Blame:

  • GitLens Component: Full GitLens integration with blame annotations and hover information
  • Blame Annotations: Inline git blame information showing commit hash, author, and time
  • Current Line Blame: Real-time blame information for the currently selected line
  • Modified Line Tracking: Visual indicators for uncommitted changes and modified lines
  • Git Blame Service: Comprehensive git blame data with caching and formatting

GitLens Capabilities:

  • Inline Annotations: Commit information displayed inline with code in Monaco Editor
  • Hover Details: Enhanced hover messages with commit details and GitHub integration
  • Modified Line Detection: Real-time tracking of changes since last save
  • Commit History: Access to detailed commit information and history
  • GitHub Integration: Links to view commits on GitHub when available

Continue to Blueprint-Driven Development to learn how to develop using your blueprint as a guide, or explore AI Assistance for advanced AI development features.
